Codes returned by the API E-commerce (HTTP, status, and other codes)

General structure of codes returned by API E-commerce

The API E-commerce uses a multi-code response structure to provide detailed results for each request. It is important to understand that successful HTTP communication (2xx status code) does not guarantee a successful transaction (authorization, capture, and so on). You must also verify the codes returned in the response body.

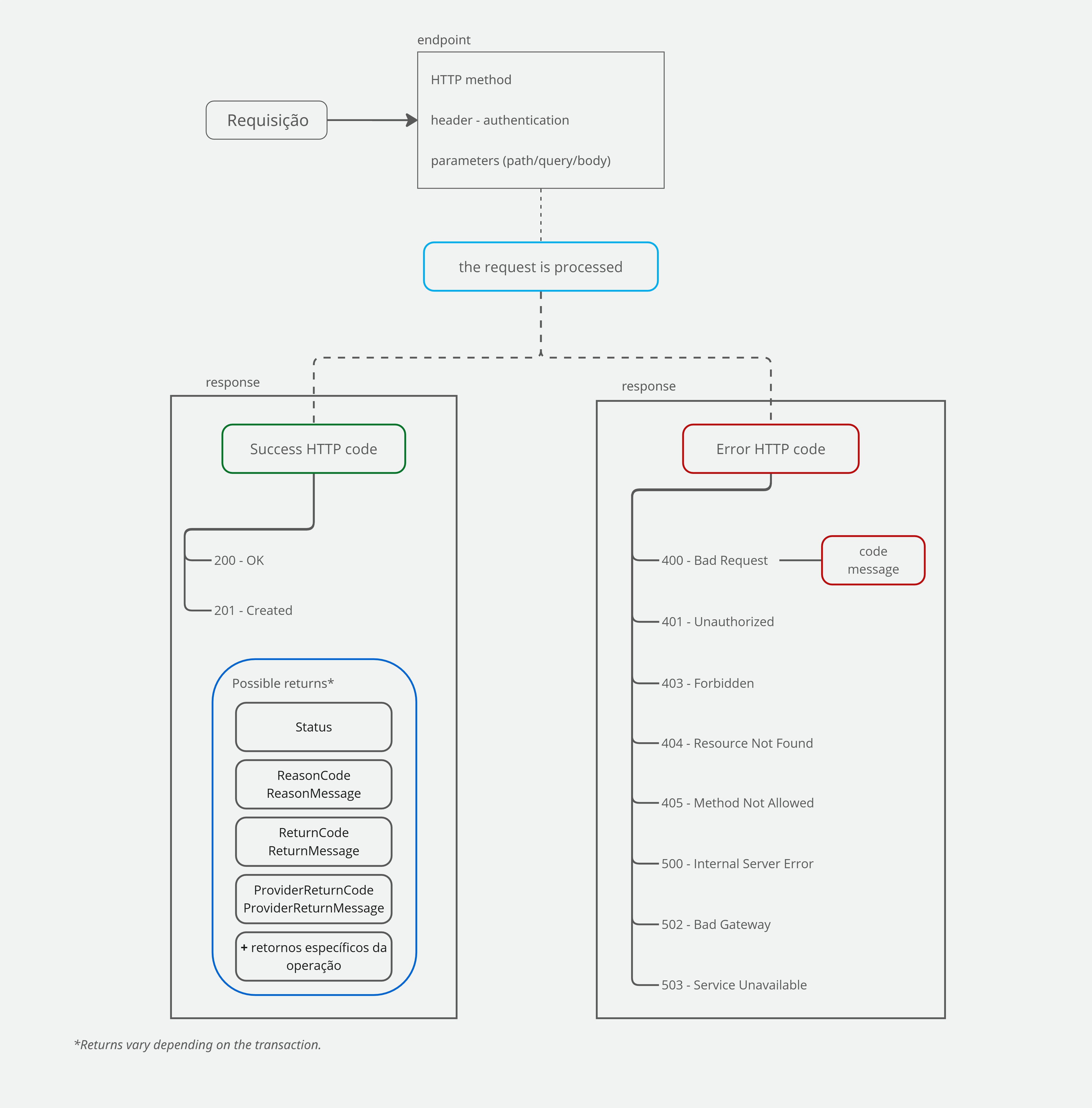

The following flowchart illustrates the API's overall response structure, highlighting the difference between technical success (HTTP) and the operation result:

If you're just getting started, use this table as your primary guide. For more details, see the specific sections linked at the end of this page:

Response code summary for API E-commerce

The following table provides a general overview of the codes returned by the API E-commerce:

Code type	Returned in (parameter)	Returned when	Examples	Notes
Status HTTP	Response header	Returned in every response to a request made to the API.	200 – OK 201 – Created 401 – Unauthorized	4xx/5xx HTTP status codes indicate a request or server failure (the API received the request but could not process it). Check `Code` and `Message` when they are present. HTTP 200 and 201 responses mean that the API E-commerce Cielo received the request and returned a response. However, you must verify `ReturnCode` and `ReturnMessage` to determine whether the operation was successful.
Erros da API	`Code` and `Message`	Returned when an HTTP error occurs	Providing an invalid MerchantKey returns HTTP status code 400, with `Code` set to 123 and `Message` set to "MerchantKey is invalid".	They may be the same values returned in `ReturnCode` and `ReturnMessage`, or in `ReasonCode` and `ReasonMessage`.
Status da transação	`Payment.Status`	For operations related to creating and/or querying transactions (after the transaction has been created, meaning a 201 Created response must have been returned). Transaction creation Transaction query Transaction void	`Payment.Status` = 2 indicates that the payment has been confirmed.	--
Código de retorno das vendas	`ReturnCode` and `ReturnMessage`	In any operation*, when the HTTP response indicates success. For transaction creation operations, an ABECS code may be returned. Transaction creation Void Capture	Success example: `ReturnCode` = 00 and `ReturnMessage` = Transaction authorized Error example: `ReturnCode` = 51 and `ReturnMessage` = Authorization denied	Even when the HTTP response indicates success (200 or 201), an error or pending status may still have occurred. You must verify `ReturnCode` and `ReturnMessage` to determine the actual outcome of the operation.
Código de retorno do provedor de pagamento	`ProviderReturnCode` and `ProviderReturnMessage`	For operations that involve a provider, such as Pix and Currency Conversion, or for capture operations, where it represents the response from Cielo's authorizer. E-commerce Currency Conversion New Pix (refund and QR Code removal) Credit card transaction void	`ProviderReturnCode` = 0 and `ProviderReturnMessage` = Refund requested successfully (Pix refund)	Even when the HTTP response indicates success (200 or 201), an error or pending status may still have occurred. You must verify `ProviderReturnCode` and `ProviderReturnMessage` to determine the actual outcome of the operation.
Códigos de motivo do retorno	`ReasonCode` and `ReasonMessage`	Capture Void Currency conversion Payment creation with boleto	Success example: `ReasonCode` = 0 and `ReasonMessage` = Operation Successful Error example: `ReasonCode` = 7 and `ReasonMessage` = Denied	Even when the HTTP response indicates success (200 or 201), an error or pending status may still have occurred. You must verify `ReasonCode` and `ReasonMessage` to determine the actual outcome of the operation.

*Query operations typically do not return ReturnCode or ReasonCode , nor their corresponding messages.

ℹ️
The API may also return codes related to specific operations and features, such as capture, void, Pix transactions, recurring transactions, or fraud analysis.

Example response for an authorized credit card transaction

The API E-commerce Cielo returns in the credit card transaction response all parameters sent in the request, as well as response-specific parameters, such as:

Transaction reconciliation parameters, including Tid, SentOrderId, and ProofOfSale;
The transaction status, in the Payment.Status parameter;
Payment.ReturnCode and Payment.ReturnMessage, which represent the authorization flow responses and indicate whether the transaction was successful;
Links, which indicate what operations can still be performed on the transaction, such as capture, query, and void.

{
  "MerchantOrderId": "Pedido123456",
  "Customer": {
    "Name": "Buyer",
    "Identity": "11122233344",
  },
  "Payment": {
    "Installments": 1,
    "Capture": false,
    "CreditCard": {
      "CardNumber": "123412******1234",
      "Holder": "Test Buyer",
      "ExpirationDate": "12/2030",
      "SaveCard": false,
      "Brand": "Visa",
      "PaymentAccountReference": "ENCIVBXH61S4EIC6IKMAQHD30FE8X"
    },
    "Tid": "1104045449792",
    "ProofOfSale": "755991",
    "AuthorizationCode": "274780",
    "SentOrderId": "Pedido123456",
    "Amount": 10000,
    "ReceivedDate": "2025-11-04 16:54:49",
    "Status": 1,
    "ReturnMessage": "Operation Successful",
    "ReturnCode": "4",
    "PaymentId": "5f675bb7-8091-490e-b7d4-8d83a46fddd2",
    "Type": "CreditCard",
    "Currency": "BRL",
    "Country": "BRA",
    "Links": [
      {
        "Method": "GET",
        "Rel": "self",
        "Href": "https://apiquerysandbox.cieloecommerce.cielo.com.br/1/sales/5f675bb7-8091-490e-b7d4-8d83a46fddd2"
      },
      {
        "Method": "PUT",
        "Rel": "capture",
        "Href": "https://apisandbox.cieloecommerce.cielo.com.br/1/sales/5f675bb7-8091-490e-b7d4-8d83a46fddd2/capture"
      },
      {
        "Method": "PUT",
        "Rel": "void",
        "Href": "https://apisandbox.cieloecommerce.cielo.com.br/1/sales/5f675bb7-8091-490e-b7d4-8d83a46fddd2/void"
      }
    ]
  }
}
